NAKSTStudio/yolov8m-chess-piece-detection

YOLOv8 Chess Piece Detection ♟️🔍

By NAKST Studio

Fine-tuned YOLOv8 model for real-time chess piece detection in 2D images. Trained on 50,000+ images over 120 epochs with enhanced generalization for real board images, videos, and app screenshots.

---

💙 Support & Shape NAKST Studio

Help us keep building free, privacy-focused chess tools! Vote for what we build next!

---

Model Details

• Base Model: YOLOv8 (Ultralytics)
• Task: Object Detection (Chess Pieces, Chess Board)
• Training Data: 50,000+ annotated chess board images
• Training Epochs: 120
• Class Set:
  • 0: board
  • 1: white_king
  • 2: white_queen
  • 3: white_rook
  • 4: white_bishop
  • 5: white_knight
  • 6: white_pawn
  • 7: black_king
  • 8: black_queen
  • 9: black_rook
  • 10: black_bishop
  • 11: black_knight
  • 12: black_pawn

Input Requirements

• Image Format: RGB (colored), JPG/PNG/BMP
• Resolution: Exactly 640 × 640 pixels
• Preprocessing: Images must be frame-padded to reach 640 × 640 resolution, not stretched/distorted. Preserve board aspect ratio in center frame.
• Order: Always RGB, batch shape [N, 640, 640, 3]
• Strict input: Other sizes or non-padded frames may result in inaccurate detections.

Usage Example

Python (Ultralytics)

from ultralytics import YOLO
from PIL import Image

model = YOLO('NAKSTStudio/yolov8-chess-piece-detection')

img = Image.open('chess_board.jpg').convert('RGB')
img640 = img.resize((640, 640), Image.LANCZOS)  # manually pad if needed
results = model(img640)
for result in results:
    for box in result.boxes:
        cid = int(box.cls[0])
        print(f"{cid}: {model.names[cid]}", box.xyxy[0].tolist())

Classes

Class ID	Name
0	board
1	white_king
2	white_queen
3	white_rook
4	white_bishop
5	white_knight
6	white_pawn
7	black_king
8	black_queen
9	black_rook
10	black_bishop
11	black_knight
12	black_pawn

Real-World Application: Chess Lab

Used in Chess Lab App by NAKST Studio for:

• 🎥 Video-to-board analysis (video frames to FEN)
• 🤖 Offline Stockfish chess engine board analysis

See assets/images/chess_lab_screenshot.png for visual demo

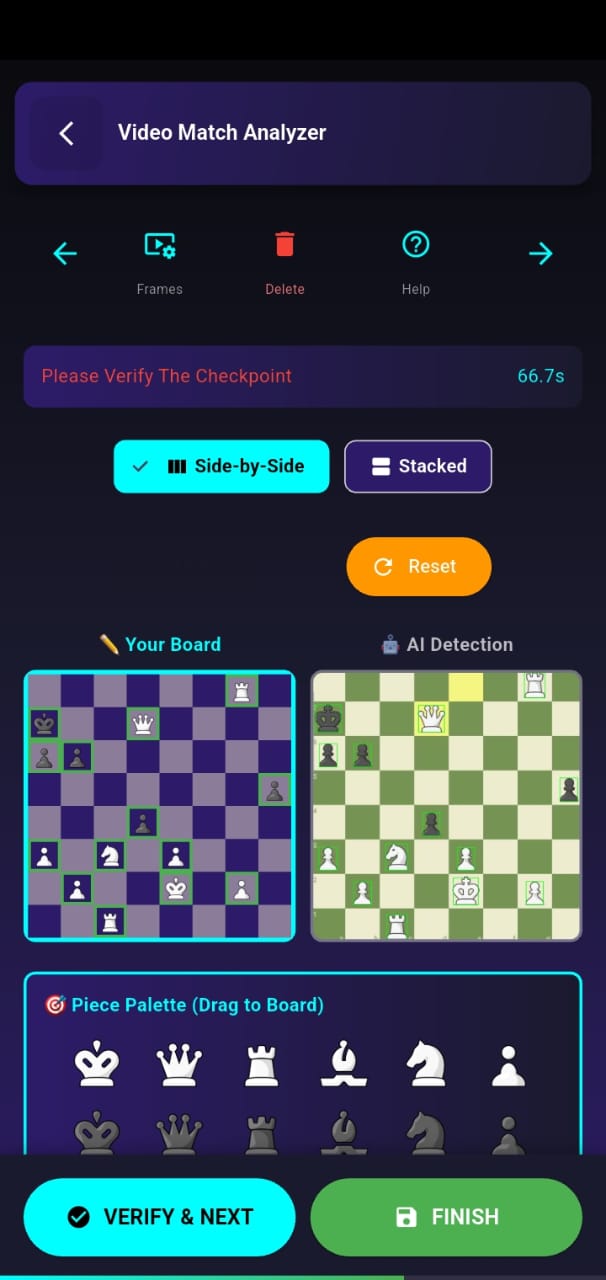

Example Detection Results

Training Configuration

• Image size: 640 × 640, frame padded
• Augmentation: rotation, blur, brightness, mosaic
• Split: 80% train, 10% val, 10% test
• Classes: 13 (includes board)

Export Formats

• PyTorch (best.pt)
• TFLite (FP16 for mobile)
• • TFLite (FP32 for better precision)
• • ONNX (Cross Platform)

License

AGPL-3.0 — free/open for research & open apps, commercial usage with source sharing.

Citation

@model{yolov8_chess_detection_2025,
  title={YOLOv8 Chess Piece Detection: Real-Time Chess Vision},
  author={NAKST Studio},
  year={2025},
  howpublished={Hugging Face Hub},
  url={https://huggingface.co/NAKSTStudio/yolov8-chess-piece-detection}
}

---

Last updated 10 November 2025. Powered by 💙️ from NAKST Studio.
